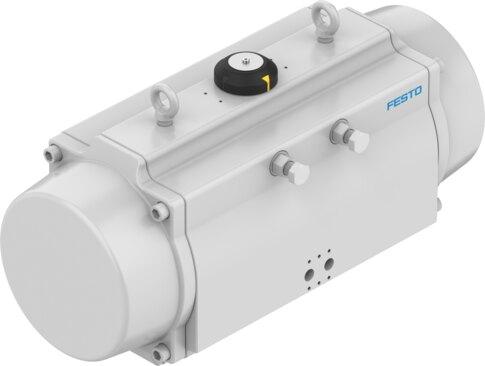

Name: Festo 8042197 Quarter turn actuator DFPD-3500-...
Brand: Festo

Quarter turn actuator DFPD-3500-...

The Festo industrial component, part number 8042197, features a valve actuator size of 3500 with an F16 flange hole pattern, a 90-degree swivel angle, and an end-position adjusting range of -5 to 5 degrees at both 0 degrees and the nominal swivel angle. Operating via double-acting or single-acting modes utilizing a kinematic yoke system and gear rack/pinion structural design, this unit supports a standard valve connection conforming to ISO 5211 and VDI/VDE 3845 (NAMUR), an operating pressure of 2 bar to 8 bar, and a burst pressure of 24 bar. It includes certified safety functions compliant with ISO 13849 and IEC 61508 for SIL 2 low demand mode and SIL 3 in a redundant architecture, functioning in any mounting position with a shaft connection depth of 48 mm to 50 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8042197
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8042197.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 3500
Flange hole pattern: F16
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: -5 deg...5 deg
Depth shaft connection: 48 mm...50 mm
Standard connection for valve: ISO 5211
Mounting position: Any
Mode of operation: Double-acting | Single-acting
Structural design: Kinematic yoke system | Gear rack/pinion
Closing direction: Closes to the right | Closes to the left
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 2
standard: VDI/VDE 3845 Size AA 3
Safety function: The safety function consists of the actuator switching to the dened | safety switching position. This switching movement is achieved by | pressurizing the corresponding pressure chamber with compressed air. | The value of the torque generated depends on the pressure diﬀerence | between the two pressure chambers separated by the piston. | The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched oﬀ and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
Safety integrity level (SIL): Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture
Certied for safety function to ISO 13849 and IEC 61508 (SIL): Product can be used in safety-related parts of control systems up to SIL | 2, low demand | up to SIL 3 in a redundant architecture
Burst pressure: 24 bar
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Nominal operating pressure: 0.3 MPa...0.6 MPa | 3 bar...6 bar

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8042197. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
