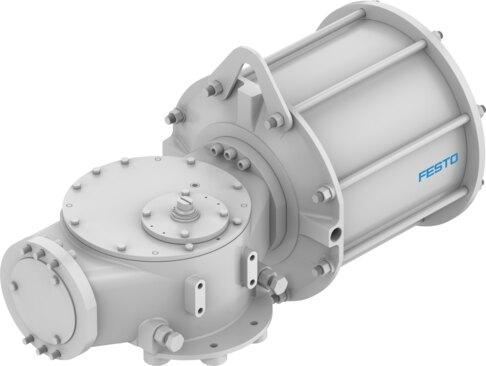

Name: Festo 8042200 Quarter turn actuator DFPD-9500-...
Brand: Festo

Quarter turn actuator DFPD-9500-...

The Festo 8042200 industrial component features an actuator size of 9500 with an F1625 flange hole pattern and a 90-degree swivel angle utilizing a kinematic yoke system. This double-acting or single-acting unit operates at a nominal pressure of 0.3 MPa to 0.6 MPa and includes safety functions certified to ISO 13849 and IEC 61508 for up to SIL 2 in low demand mode or SIL 3 in redundant architectures. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8042200
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8042200.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 9500
Flange hole pattern: F1625
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: -5 deg...5 deg
Depth shaft connection: 57 mm
Standard connection for valve: ISO 5211
Mounting position: Any
Mode of operation: Double-acting | Single-acting
Structural design: Kinematic yoke system
Closing direction: Closes to the right | Closes to the left
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 3
Safety function: The safety function consists of the actuator switching to the dened | safety switching position. This switching movement is achieved by | pressurizing the corresponding pressure chamber with compressed air. | The value of the torque generated depends on the pressure diﬀerence | between the two pressure chambers separated by the piston. | The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched oﬀ and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
Safety integrity level (SIL): Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture
Certied for safety function to ISO 13849 and IEC 61508 (SIL): Product can be used in safety-related parts of control systems up to SIL | 2, low demand | up to SIL 3 in a redundant architecture
Burst pressure: 18 bar
Operating pressure: 0.3 MPa...0.6 MPa | 3 bar...6 bar | 43.5 psi...87 psi
Nominal operating pressure: 0.3 MPa...0.6 MPa | 3 bar...6 bar
