Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

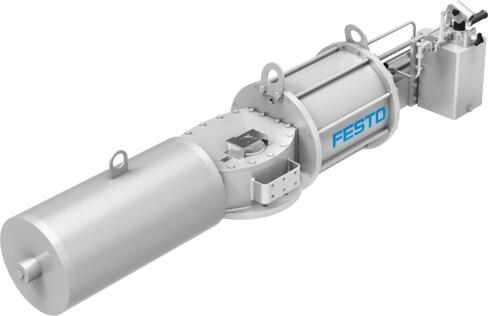

Reference imageConfirm configuration by manufacturer part number.
Festo
8042201
Quarter turn actuator DFPD-HD-9000-
Engineered by Festo with a size 9000 valve actuator and a kinematic yoke system, part number 8042201 operates in double-acting or single-acting modes with a 90-degree swivel angle. Featuring an ISO 5211 standard valve connection and an F25 flange hole pattern, this component includes optical position sensing and operates within a pressure range of 14.5 psi to 123.25 psi. It carries ATEX and UKCA markings for explosion protection in Zones 1, 2, 21, and 22, and is certified for safety functions up to SIL 2 under ISO 13849 and IEC 61508. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8042201
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8042201.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 9000
- Flange hole pattern
- F25
- Piston diameter
- 235 mm | 280 mm | 335 mm | 385 mm | 435 mm
- Swivel angle
- 90 deg
- End-position adjusting range at 0°
- -5 deg...5 deg
- End-position adjusting range at nominal swivel angle
- -5 deg...5 deg
- Depth shaft connection
- 160 mm
- Standard connection for valve
- ISO 5211
- Cushioning
- No cushioning
- Mounting position
- Any | Horizontal
- Mode of operation
- Double-acting | Single-acting
- Structural design
- Kinematic yoke system
- Position sensing
- Optical
- Closing direction
- Closes to the right | Closes to the left
- Certied for safety function to ISO 13849 and IEC 61508 (SIL)
- Product can be used in safety-related parts of control systems up to SIL | 2, low demand
- Operating pressure
- 0.1 MPa...0.85 MPa | 1 bar...8.5 bar | 14.5 psi...123.25 psi
- Nominal operating pressure
- 0.3 MPa...0.6 MPa | 3 bar...6 bar | 43.5 psi...87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Certicate issuing authority
- German Technical Control Board North (TÜV Nord) 212170802
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8042201. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
