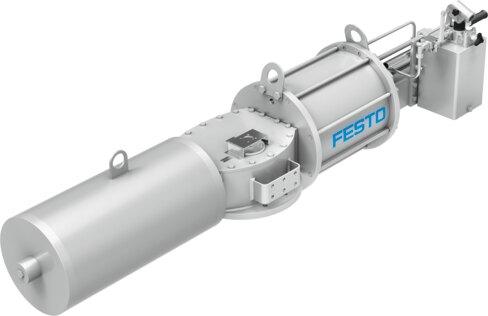

Reference imageConfirm configuration by manufacturer part number.
Festo
8042202
Quarter turn actuator DFPD-HD-18000-
The Festo industrial component, part number 8042202, features an actuator size of 18000 with an F30 flange hole pattern and a kinematic yoke system structural design. Operating via double-acting or single-acting modes with piston diameters ranging from 335 mm to 585 mm, it delivers a 90-degree swivel angle and an operating pressure range of 0.1 MPa to 0.85 MPa. Certified for safety functions up to SIL 2 under ISO 13849 and IEC 61508, the unit includes optical position sensing and carries ATEX and UKCA markings for explosion protection in Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8042202
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8042202.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 18000
- Flange hole pattern
- F30
- Piston diameter
- 335 mm | 385 mm | 435 mm | 485 mm | 535 mm | 585 mm
- Swivel angle
- 90 deg
- End-position adjusting range at 0°
- -5 deg...5 deg
- End-position adjusting range at nominal swivel angle
- -5 deg...5 deg
- Depth shaft connection
- 200 mm
- Standard connection for valve
- ISO 5211
- Cushioning
- No cushioning
- Mounting position
- Any | Horizontal
- Mode of operation
- Double-acting | Single-acting
- Structural design
- Kinematic yoke system
- Position sensing
- Optical
- Closing direction
- Closes to the right | Closes to the left
- Certied for safety function to ISO 13849 and IEC 61508 (SIL)
- Product can be used in safety-related parts of control systems up to SIL | 2, low demand
- Operating pressure
- 0.1 MPa...0.85 MPa | 1 bar...8.5 bar | 14.5 psi...123.25 psi
- Nominal operating pressure
- 0.3 MPa...0.6 MPa | 3 bar...6 bar | 43.5 psi...87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
