Festo
8042203

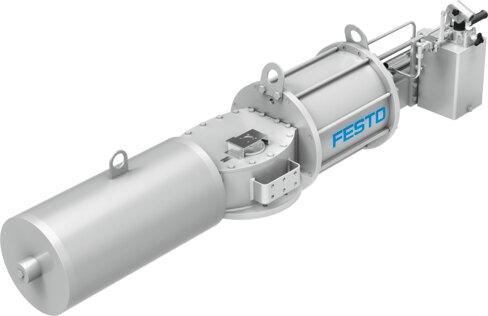

Quarter turn actuator DFPD-HD-32000-
The Festo part number 8042203 is an industrial component featuring a valve actuator size of 32000, an F35 flange hole pattern, and a kinematic yoke structural design supporting piston diameters from 385 mm to 735 mm. This double-acting or single-acting unit offers a 90-degree swivel angle with an end-position adjusting range of -5 to 5 degrees at both 0 degrees and the nominal angle, operating within a pressure range of 14.5 psi to 123.25 psi and certified for safety functions up to SIL 2 under ISO 13849 and IEC 61508. CE and UKCA marked for ATEX Zone 1 and Zone 2 explosion protection, the device utilizes optical position sensing and mounts in any position or horizontally. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8042203
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8042203.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 32000
- Flange hole pattern
- F35
- Piston diameter
- 385 mm | 435 mm | 485 mm | 535 mm | 585 mm | 635 mm | 685 mm | 735 mm
- Swivel angle
- 90 deg
- End-position adjusting range at 0°
- -5 deg...5 deg
- End-position adjusting range at nominal swivel angle
- -5 deg...5 deg
- Depth shaft connection
- 230 mm
- Standard connection for valve
- ISO 5211
- Cushioning
- No cushioning
- Mounting position
- Any | Horizontal
- Mode of operation
- Double-acting | Single-acting
- Structural design
- Kinematic yoke system
- Position sensing
- Optical
- Closing direction
- Closes to the right | Closes to the left
- Certied for safety function to ISO 13849 and IEC 61508 (SIL)
- Product can be used in safety-related parts of control systems up to SIL | 2, low demand
- Operating pressure
- 0.1 MPa...0.85 MPa | 1 bar...8.5 bar | 14.5 psi...123.25 psi
- Nominal operating pressure
- 0.3 MPa...0.7 MPa | 3 bar...7 bar | 43.5 psi...101.5 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8042203. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
