8042539

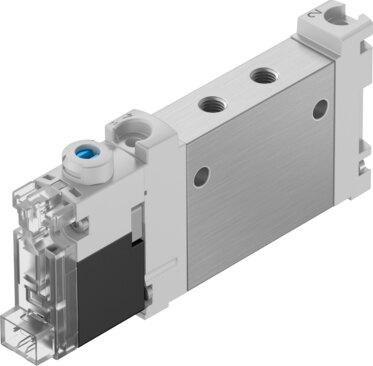

Name: Festo 8042539 Air solenoid valve VUVG-LK10-M52-AT-M5-1H2L-S
Brand: Festo

Air solenoid valve VUVG-LK10-M52-AT-M5-1H2L-S

The Festo 8042539 is a 5/2-way monostable industrial component utilizing a piston slide structural design with a soft sealing principle and positive overlap. Featuring a 10 mm valve size, an M5 pneumatic working port, and an internal pilot air supply, this electrically actuated unit operates at 24V DC within a pressure range of 0.25 MPa to 0.7 MPa (2.5 bar to 7 bar) to deliver a normal nominal flow rate of 195 l/min. It includes adjustable exhaust air function, a pneumatic spring reset method, detenting and non-detenting manual override, and carries c UL us recognition under UL certificate MH19482 with an IP40 degree of protection. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8042539
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8042539.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Valve size: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 195 l/min
Pneumatic working port: M5
Operating voltage: 24V DC
Operating pressure: 0.25 MPa...0.7 MPa | 2.5 bar...7 bar
Structural design: Piston slide with sealing ring
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
Certicate issuing authority: UL MH19482
Degree of protection: IP40
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Signal status display: LED
Max. switching frequency: 2 Hz
Switching time oﬀ: 17 ms
On switching time: 14 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 1600 µs
Max. negative test pulse on 1 signal: 3000 µs
Coil characteristics: 24 V DC: 0.8 W
Permissible voltage uctuations: +/- 10%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8042539. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
