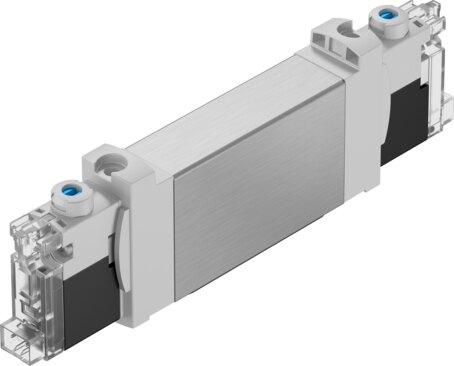

Reference imageConfirm configuration by manufacturer part number.
Festo
8042570
Air solenoid valve VUVG-BK14-T32C-AT-F-1H2L-S
The Festo 8042570 is a 14 mm industrial component featuring a 2x3/2 closed, monostable valve function with electrical actuation and a piloted type of control. It delivers a normal nominal flow rate of 350 l/min through a flange pneumatic working port at an operating pressure range of 0.15 MPa to 0.7 MPa and 24V DC operating voltage. Built with a piston slide structural design, soft sealing principle, and internal pilot air supply port, this c UL us-recognized unit includes an adjustable exhaust air function, positive overlap lap, and both detenting and non-detenting manual override. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8042570
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8042570.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 350 l/min
- Pneumatic working port
- Flange
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...0.7 MPa | 1.5 bar...7 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP40
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
- Max. switching frequency
- 2 Hz
- Switching time off
- 20 ms
- On switching time
- 13 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse on 1 signal
- 3000 µs
- Coil characteristics
- 24 V DC: 0.8 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
