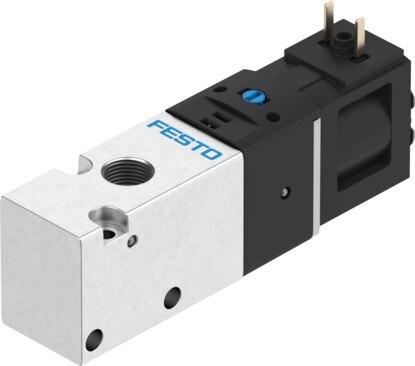

Reference imageConfirm configuration by manufacturer part number.
Festo
8043213
Air solenoid valve VUVS-LK20-M32C-AD-G18-1C1-S
The Festo part number 8043213 is a 21 mm electrical 3/2-way closed monostable industrial component utilizing a piston gate valve structural design with soft sealing and positive overlap. Featuring a G1/8 pneumatic working port, an internal pilot air supply port, and a normal nominal flow rate of 550 l/min normalized to DIN 1343, it operates at 24V DC within an operating pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar). This piloted control unit includes an adjustable exhaust air function, a pneumatic spring reset method, detenting and non-detenting manual override, and IP65 degree of protection with a plug socket as per IEC 60529 for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8043213
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8043213.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Valve size
- 21 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 5.2 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.38
- C value
- 2.66 l/sbar
- Switching time off
- 20 ms
- On switching time
- 16 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2700 µs
- Max. negative test pulse on 1 signal
- 1100 µs
- Coil characteristics
- 24 V DC: 2.4 W
- Permissible voltage uctuations
- +/- 10%
