Festo
8043340

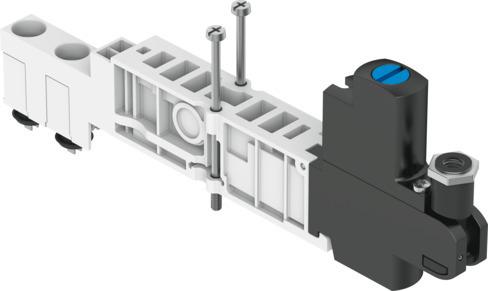

Regulator plate VMPA14-B8-R2C2-C-10
The Festo 8043340 is a 14 mm industrial component for pneumatic vertical stacking featuring a pressure regulator for port 2, a constant output pressure controller function with secondary exhausting, and an M5 pressure gauge connection for optional gauge installation in any mounting position. It operates with a pressure regulation range of 2 bar to 6 bar, an inlet pressure range of 0.5 bar to 10 bar, and compressed air as per ISO 8573-1:2010 [7:4:4], supporting oil lubrication operation and featuring NBR seals, a PA operator panel, RoHS-compliant materials, and a CRC 1 corrosion resistance class. Weighing 76 g with a maximum tightening torque of 0.65 Nm, an IP65 degree of protection, and VDMA24364-B1/B2-L LABS conformity, this unit mounts vertically on a manifold sub-base for ambient temperatures between -5 °C and 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8043340
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8043340.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 14 mm
- Mounting position
- Any
- Pneumatic vertical stacking
- Pressure regulator for 2
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Pressure regulation range
- 2 bar...6 bar
- Inlet pressure 1
- 0.5 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | As per IEC 60529
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque
- 0.65 Nm
- Product weight
- 76 g
- Vertical stacking mounting type
- On manifold sub-base
- Pressure gauge connection
- M5
- Note on materials
- RoHS compliant
- Material of operator panel
- PA
- Seals material
- NBR
- Controller housing material
- PA
