Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

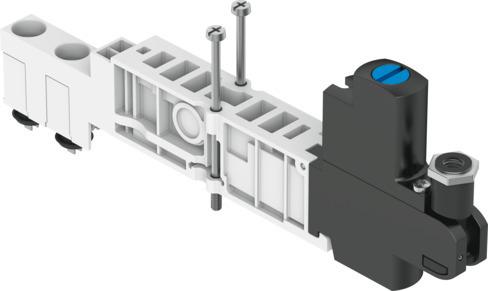

Reference imageConfirm configuration by manufacturer part number.
Festo
8043344
Regulator plate VMPA14-B8-R3C2-C-06
The Festo 8043344 is a 14 mm industrial component featuring a pressure regulator for 4 designed for vertical pneumatic stacking on a manifold sub-base in any mounting position. It provides a constant output pressure with secondary exhausting across a regulation range of 2 bar to 6 bar, operating with compressed air according to ISO 8573-1:2010 [7:4:4] at inlet pressures from 0.5 bar to 10 bar. Built with NBR seals, a PA operator panel, and an IP65 degree of protection, this 76 g unit supports an optional M5 pressure gauge and oil-lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8043344
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8043344.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 14 mm
- Mounting position
- Any
- Pneumatic vertical stacking
- Pressure regulator for 4
- Controller function
- Constant output pressure | With secondary exhausting
- Optional pressure gauge
- Possible
- Pressure regulation range
- 2 bar...6 bar
- Inlet pressure 1
- 0.5 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP65 | As per IEC 60529
- Ambient temperature
- -5 °C...50 °C
- Max. tightening torque
- 0.65 Nm
- Product weight
- 76 g
- Vertical stacking mounting type
- On manifold sub-base
- Pressure gauge connection
- M5
- Note on materials
- RoHS compliant
- Material of operator panel
- PA
- Seals material
- NBR
- Controller housing material
- PA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8043344. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
