Festo
8043928

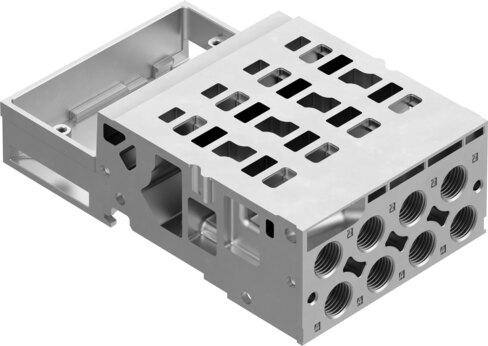

Sub-base VMPA14-FB-AP-4-1-T1
Manufactured by Festo, part number 8043928 is an industrial component featuring a die-cast aluminum sub-base with dimensions of 65.5 mm in width and 107.3 mm in length, supporting a maximum of 4 valve positions. It operates within a pressure range of -0.9 bar to 10 bar (-0.09 MPa to 1 MPa) and a pilot pressure of 3 bar to 8 bar (0.3 MPa to 0.8 MPa), incorporating G1/8 pneumatic connections 2 and 4. Weighing 250 g, the RoHS-compliant unit has a CRC rating of 0, VDMA24364-B1/B2-L LABS conformity, and an ambient temperature operating range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8043928
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8043928.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 65.5 mm
- Length
- 107.3 mm
- Width dimension
- 14.8 mm | 14.9 mm
- Max. no. of valve positions
- 4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 250 g
- Pneumatic connection 2
- G1/8
- Pneumatic connection 4
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8043928. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
