Festo
8047063

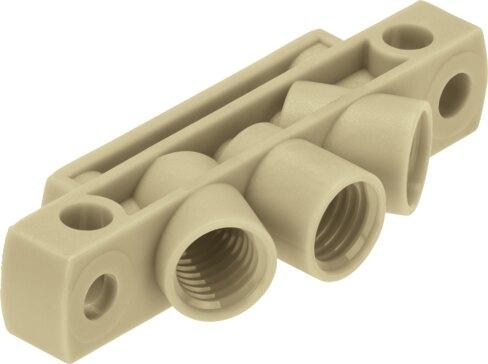

Sub-base VABS-K1-7B-12-U14-P
Engineered by Festo, the part number 8047063 is an industrial component featuring a 1.2 mm nominal width, a 7 mm valve size, and internal thread 1.4-28 UNF-2B fluid connectors with a connection direction underneath. This reversible flow unit accommodates both liquid and gaseous media within a medium and ambient temperature range of 0 °C to 50 °C, supporting sub-base mounting with a through-hole and pneumatic valve mounting via internal thread. Weighing 3 g, the RoHS-compliant assembly has a 0 - No corrosion stress rating and permits a maximum valve mounting tightening torque of 0.15 Nm alongside a maximum pneumatic fitting tightening torque of 0.6 Nm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8047063
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047063.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 1.2 mm
- Valve size
- 7 mm
- Fluid connector
- Internal thread 1/4-28 UNF-2B
- Mounting position
- Any
- Structural design
- Connection direction underneath
- Flow direction
- Reversible
- Operating medium
- Liquid media | Gaseous media
- Information on operating and pilot media
- Observe resistance of materials that come into contact with media
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...70 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Max. tightening torque for valve mounting
- 0.15 Nm
- Max. tightening torque of pneumatic tting
- 0.6 Nm
- Product weight
- 3 g
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Note on materials
- RoHS compliant
- Material of sub-base
- PEEK
- Threaded sleeve material
- high-alloy stainless steel
