Festo
8047350

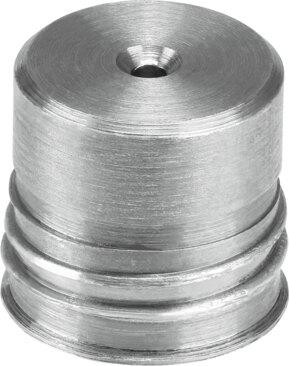

Fixed flow restrictor VFFG-T-F4-10
The Festo 8047350 is an industrial component featuring a flow control function and tapped mounting for a 4 mm diameter size, with a nominal width of 1.05 mm and a product weight of 0.4 g. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] at an operating pressure ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and an ambient temperature between -5 °C and 60 °C, supporting oil lubrication operation and carrying c UL us - recognized (OL) certification with RoHS compliant materials. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8047350
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047350.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Type of mounting
- Tapped
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Ambient temperature
- -5 °C...60 °C
- Certication
- c UL us - recognized (OL)
- Size
- For 4 mm diameter
- Nominal width
- 1.05 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Product weight
- 0.4 g
- Note on materials
- RoHS compliant
