Festo
8047354

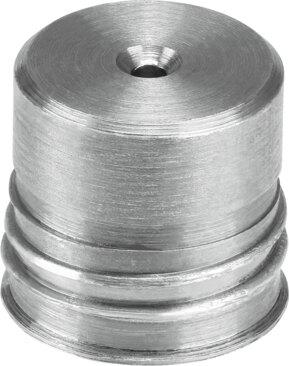

Fixed flow restrictor VFFG-T-F6-8
The Festo part number 8047354 is an industrial component providing a flow control function with a 0.85 mm nominal width, featuring tapped mounting for 5.8 mm diameter configurations and a product weight of 1.2 g. It operates within a pressure range of -0.09 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], with an ambient and storage temperature range between -5 °C and 60 °C. This RoHS-compliant unit holds c UL us recognition and exhibits VDMA24364-B1/B2-L LABS conformity while supporting oil-lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8047354
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047354.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Type of mounting
- Tapped
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Ambient temperature
- -5 °C...60 °C
- Certication
- c UL us - recognized (OL)
- Size
- For 5.8 mm diameter
- Nominal width
- 0.85 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Product weight
- 1.2 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8047354. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
