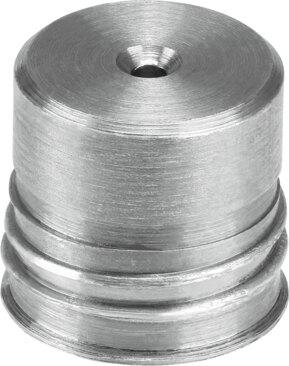

Festo
8047357
Fixed flow restrictor VFFG-T-F6-14
The Festo part number 8047357 is an industrial component featuring a flow control function and tapped mounting for 5.8 mm diameter connections with a 1.4 mm nominal width. This RoHS-compliant unit weighs 1.2 g, operates within a pressure range of -0.9 bar to 10 bar (-0.09 MPa to 1 MPa), and functions at ambient temperatures from -5 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. It holds c UL us recognition (OL), conforms to VDMA24364-B1/B2-L LABS (PWIS) standards, and permits operation with oil lubrication which is required for further use. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8047357
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047357.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Type of mounting
- Tapped
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Ambient temperature
- -5 °C...60 °C
- Certication
- c UL us - recognized (OL)
- Size
- For 5.8 mm diameter
- Nominal width
- 1.4 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Product weight
- 1.2 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8047357. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
