Name: Festo 8047358 Fixed flow restrictor VFFG-T-F6-16
Brand: Festo

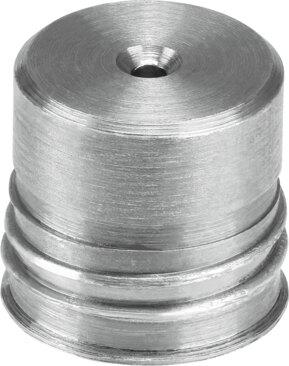

Fixed flow restrictor VFFG-T-F6-16

The Festo part number 8047358 is an industrial component featuring a flow control function and tapped mounting, with a nominal width of 1.6 mm designed for 5.8 mm diameter connections. This RoHS-compliant unit weighs 1.2 g, operates with compressed air according to ISO 8573-1:2010 [7:4:4] within an operating pressure range of -0.9 bar to 10 bar, and functions at ambient temperatures from -5 °C to 60 °C with oil lubrication possible. It carries c UL us recognition (OL) certification, conforms to VDMA24364-B1/B2-L LABS (PWIS) standards, and maintains a storage temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8047358
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8047358.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Flow control function
Type of mounting: Tapped
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Ambient temperature: -5 °C...60 °C
Certication: c UL us - recognized (OL)
Size: For 5.8 mm diameter
Nominal width: 1.6 mm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C...60 °C
Product weight: 1.2 g
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8047358. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
