Festo
8047359

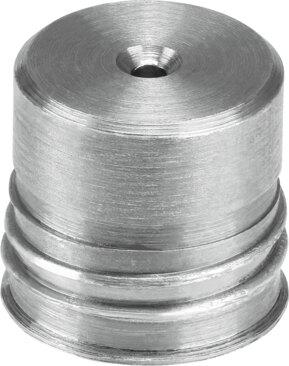

Fixed flow restrictor VFFG-T-F6-18
The Festo part number 8047359 is an industrial flow control valve featuring tapped mounting and a nominal width of 1.8 mm for 5.8 mm diameter applications. This component operates at pressures ranging from -0.9 bar to 10 bar within an ambient temperature of -5 °C to 60 °C, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with oil lubrication possible. Weighing 1.2 g and carrying c UL us - recognized (OL) certification, the RoHS-compliant unit complies with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8047359
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047359.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Flow control function
- Type of mounting
- Tapped
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Ambient temperature
- -5 °C...60 °C
- Certication
- c UL us - recognized (OL)
- Size
- For 5.8 mm diameter
- Nominal width
- 1.8 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Product weight
- 1.2 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8047359. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
