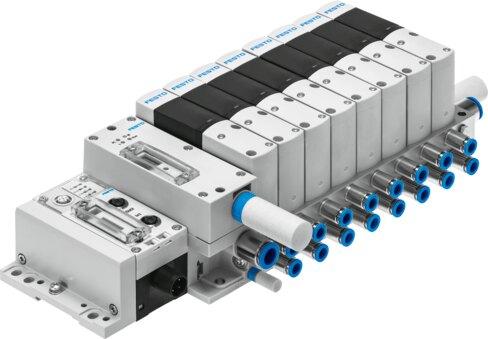

Reference imageConfirm configuration by manufacturer part number.
Festo
8047502
Motion Terminal VTEM
The Festo 8047502 is a 27 mm industrial component featuring a fixed grid valve manifold design with a 28 mm width dimension and a maximum of 8 valve positions. It operates with compressed air or inert gases within an operating pressure range of 3 bar to 8 bar (43.5 psi to 116 psi), utilizing internal or external pilot air supply ports and NBR and TPE-U(PU) seals. This IP65-rated unit includes an electrical I/O system, adheres to VDMA24364 Zone III LABS conformity, and incorporates UL94 HB fire-tested materials compliant with RoHS standards. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8047502
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047502.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve size
- 27 mm
- Valve manifold design
- Fixed grid
- Width dimension
- 28 mm
- Max. no. of valve positions
- 8
- Exhaust air function
- Cannot be throttled
- Pilot air supply port
- External | Internal
- Electrical I/O system
- Yes
- Degree of protection
- IP65
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
- Seals material
- NBR | TPE-U(PU)
- Material re test
- UL94 HB
- For use in the food industry
- See supplementary material information
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication not possible | Condensation in the valve not allowed
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar | 43.5 psi...116 psi
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Pilot pressure psi
- 43.5 psi...116 psi
- Information on operating pressure
- 0 - 8 bar with external pilot air | Vacuum operation at connection 3 only
- Valve function
- Can be assigned using Motion App
- Motion apps
- Leakage diagnostics | Flow control | ECO drive | Positioning | Proportional pressure regulation
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8047502. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
