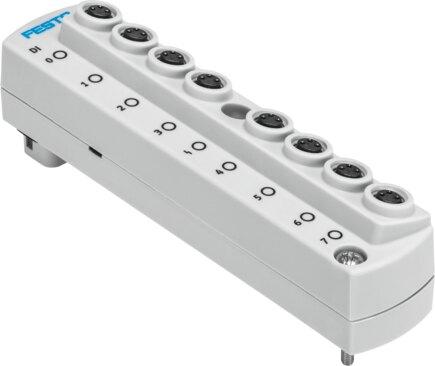

Reference imageConfirm configuration by manufacturer part number.
Festo
8047505
Input module CTMM-S1-D-8E-M8-3
Festo Input module CTMM-S1-D-8E-M8-3, part number 8047505, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8047505
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047505.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Dimensions W x L x H
- 27 mm x 123 mm x 40 mm
- Width dimension
- 28 mm
- Product weight
- 75 g
- Temperature of medium
- -5 °C...50 °C
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...40 °C
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Max. cable length
- 30 m
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced
- Diagnostics via LED
- Faults per module | Status per channel
- No. of outputs
- 0
- Nominal operating voltage DC
- 24 V
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Permissible voltage uctuations for electronics/sensors
- ±25%
- Intrinsic current consumption at nominal operating voltage for
- Typically 12 mA
- Electrical connection input, function
- Digital input
- Electrical connection input, connection type
- 8x port
- Electrical input connection, connection technology
- M8x1, A-coded as per EN 61076-2-104
- Electrical connection, input, number of pins/wires
- 3
- No. of inputs
- 8
- Input characteristics
- As per IEC 61131-2, Type 3
- Switching level
- Signal 0: <= 5 V | Signal 1: >= 11 V
