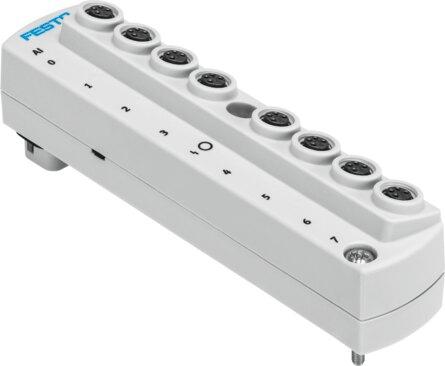

Name: Festo 8047506 Input module CTMM-S1-A-8E-A-M8-4
Brand: Festo

Input module CTMM-S1-A-8E-A-M8-4

The Festo part number 8047506 is an industrial component featuring a PA-reinforced housing with dimensions of 27 mm x 123 mm x 40 mm, a width of 28 mm, and a product weight of 75 g. Operating on a nominal 24 V DC voltage with a permissible voltage fluctuation of ±25% for electronics and sensors, this unit provides zero outputs and includes LED diagnostics for module faults. It maintains an IP65 and IP67 degree of protection, a corrosion resistance class of CRC 2, and functions within a medium and ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8047506
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8047506.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: 27 mm x 123 mm x 40 mm
Width dimension: 28 mm
Product weight: 75 g
Temperature of medium: -5 °C...50 °C
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...40 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Max. cable length: 30 m
LABS (PWIS) conformity: VDMA24364-B1/B2-L
CE marking (see declaration of conformity): As per EU EMC directive
Note on materials: RoHS compliant
Housing material: PA-reinforced
Diagnostics via LED: Faults per module
No. of outputs: 0
Nominal operating voltage DC: 24 V
Nominal operating voltage DC for electronics/sensors: 24 V
Permissible voltage uctuations for electronics/sensors: ±25%
Intrinsic current consumption at nominal operating voltage for: Typically 12 mA
Electrical connection input, function: Analogue input
Electrical connection input, connection type: 8x port
Electrical input connection, connection technology: M8x1, A-coded as per EN 61076-2-104
Electrical connection, input, number of pins/wires: 4
No. of inputs: 8
Max. residual current of inputs per module: 0.2 A
Measured variable: current
Signal range: 4 - 20 mA

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8047506. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
