Festo
8047670
Connecting cable NEBV-Z4WA2L-P-E-10-N-LE2-S1
The Festo part number 8047670 is an industrial component featuring a 24 V DC nominal operating voltage with a DC operating voltage range of 20.4 V to 26.4 V and an integrated protective circuit with a yellow LED signal status display. This 170 g assembly utilizes an angled square socket field device connection with 2 pins, metric screw connection technology, and an M2 central screw mounting type for air solenoid valves, alongside a 2-pin open end control side cable connection. Request a formal quote for this exact Festo part number by providing your required quantity and application details.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8047670
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047670.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Signal status display
- Yellow LED
- Additional functions
- Protective circuit
- Cable designation
- Without label holder
- Contact durability
- 50
- Product weight
- 170 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled

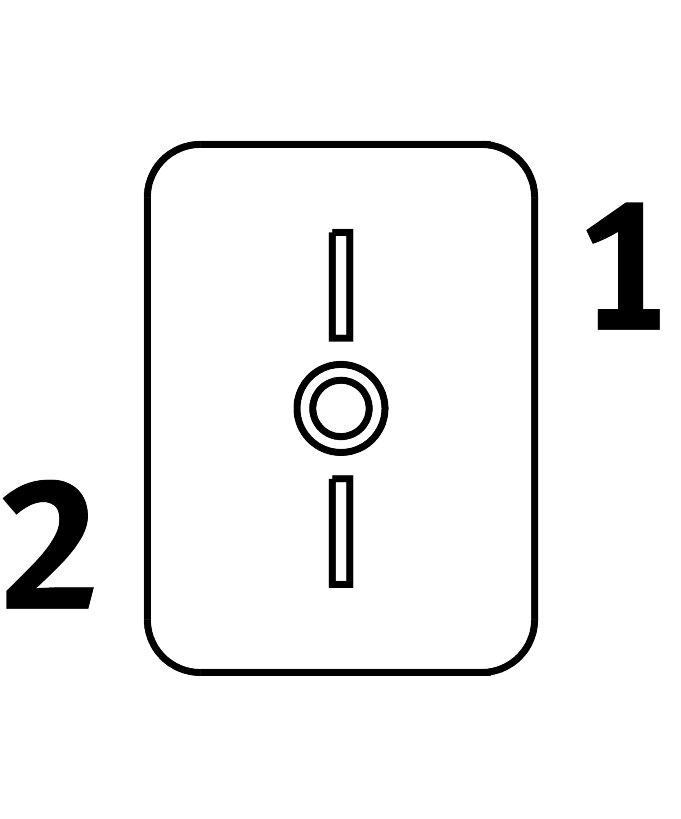

- Electrical connection 1, connection technology
- Connection diagram ZC, metric screw
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- On air solenoid valve with M2 central screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 20.4 V...26.4 V
- Nominal operating voltage DC
- 24 V
- Surge resistance
- 2.4 kV
- Reverse polarity protection
- Bipolar
- Protective earth connection
- Not available
- Cable length
- 10 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 29 mm
- Cable diameter
- 2.9 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8047670. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
