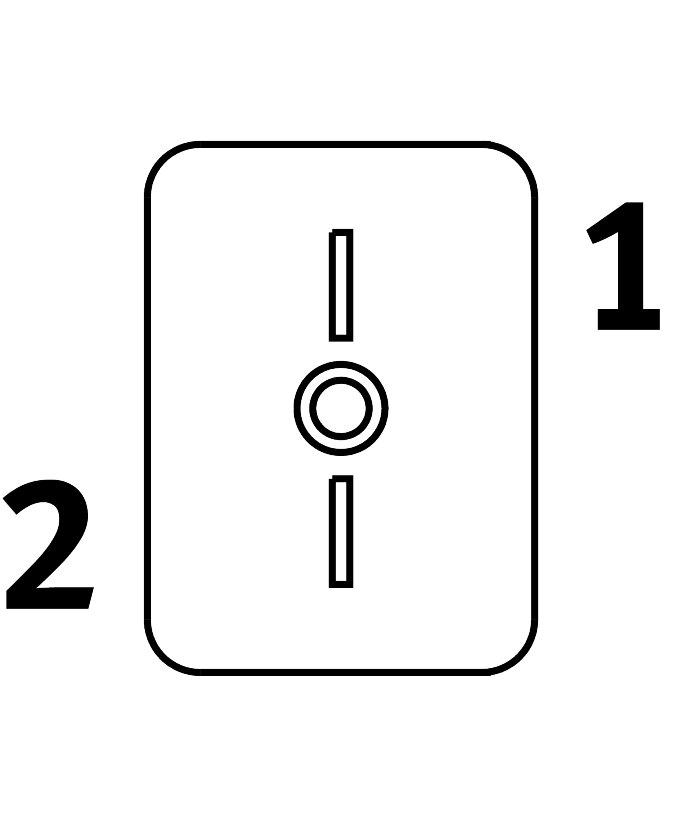

Reference imageConfirm configuration by manufacturer part number.
Festo
8047673
Connecting cable NEBV-Z4WA2L-P-E-0.5-N-M8G3-S1
This Festo industrial component, part number 8047673, weighs 18 g and features an integrated yellow LED signal status display with a protective circuit and no label holder. Connection 1 is an angled square socket on the field device side with a metric screw and connection diagram ZC, mounted via an M2 central screw on an air solenoid valve using 2 occupied pins out of 2. Connection 2 provides a straight round M8x1 A-coded plug on the control side conforming to EN 61076-2-104, utilizing 2 occupied pins out of 3, and maintains a contact durability rating of 50. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8047673
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047673.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Signal status display
- Yellow LED
- Additional functions
- Protective circuit
- Cable designation
- Without label holder
- Contact durability
- 50
- Product weight
- 18 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- Connection diagram ZC, metric screw
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- On air solenoid valve with M2 central screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 2, number of pins/wires
- 3
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 20.4 V...26.4 V
- Nominal operating voltage DC
- 24 V
- Surge resistance
- 2.4 kV
- Reverse polarity protection
- Bipolar
- Protective earth connection
- Not available
- Cable length
- 0.5 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
