8047675

Name: Festo 8047675 Connecting cable NEBV-Z3WA2L-R-E-10-N-LE2-S1
Brand: Festo

Connecting cable NEBV-Z3WA2L-R-E-10-N-LE2-S1

The Festo part number 8047675 is an industrial component weighing 170 g, featuring a yellow LED signal status display alongside holding current reduction and a protective circuit. It is certified for explosion prevention and protection in Zone 2 for ATEX and UKEX, with an ATEX gas category of II 3G, Ex ec IIC Gc X ignition protection, and EPL Gc (GB) certification. Electrical connection 1 on the field device side utilizes an angled square socket with 2 pins, connected via a self-tapping screw and connection diagram ZC for mounting directly on an air solenoid valve without a label holder. Electrical connection 2 on the control side consists of an open-ended cable with 2 occupied wires and a contact durability of 50. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8047675
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8047675.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (UKEX)
ATEX category gas: II 3G
Type of ignition protection for gas: Ex ec IIC Gc X
Explosion protection certication outside the EU: EPL Gc (GB)
Signal status display: Yellow LED
Additional functions: Holding current reduction | Protective circuit
Cable designation: Without label holder
Contact durability: 50
Product weight: 170 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

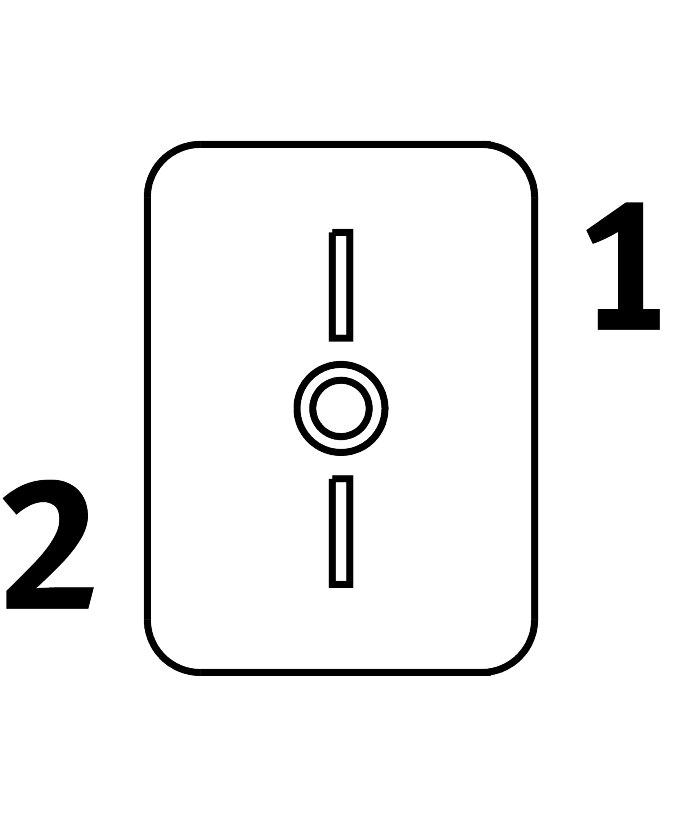

Electrical connection 1, connection technology: Connection diagram ZC, self-tapping screw
Electrical connection 1, number of pins/wires: 2
Electrical connection 1, occupied pins/wires: 2
Electrical connection 1, type of mounting: On air solenoid valve with self-tapping screw
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 2
Electrical connection 2, occupied pins/wires: 2
DC operating voltage range: 20.4 V...26.4 V
Nominal operating voltage DC: 24 V
Surge resistance: 2.4 kV
Reverse polarity protection: Bipolar
Protective earth connection: Not available

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8047675. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
