Name: Festo 8047677 Connecting cable NEBV-Z3WA2L-R-E-5-N-LE2-S1
Brand: Festo

Connecting cable NEBV-Z3WA2L-R-E-5-N-LE2-S1

The Festo part number 8047677 is an industrial component weighing 90 g, featuring an angled square socket field device connection with 2 pins that mounts onto an air solenoid valve via a self-tapping screw and connects on the control side to an open-ended cable. Equipped with a yellow LED signal status display, holding current reduction, and a protective circuit, this hardware carries ATEX and UKEX Zone 2 explosion prevention certifications for gas environments under category II 3G with Ex ec IIC Gc X ignition protection and EPL Gc (GB) certification outside the EU. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8047677
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8047677.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (UKEX)
ATEX category gas: II 3G
Type of ignition protection for gas: Ex ec IIC Gc X
Explosion protection certication outside the EU: EPL Gc (GB)
Signal status display: Yellow LED
Additional functions: Holding current reduction | Protective circuit
Cable designation: Without label holder
Contact durability: 50
Product weight: 90 g
Electrical connection 1, function: Field device side
Electrical connection 1, design: Square
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled

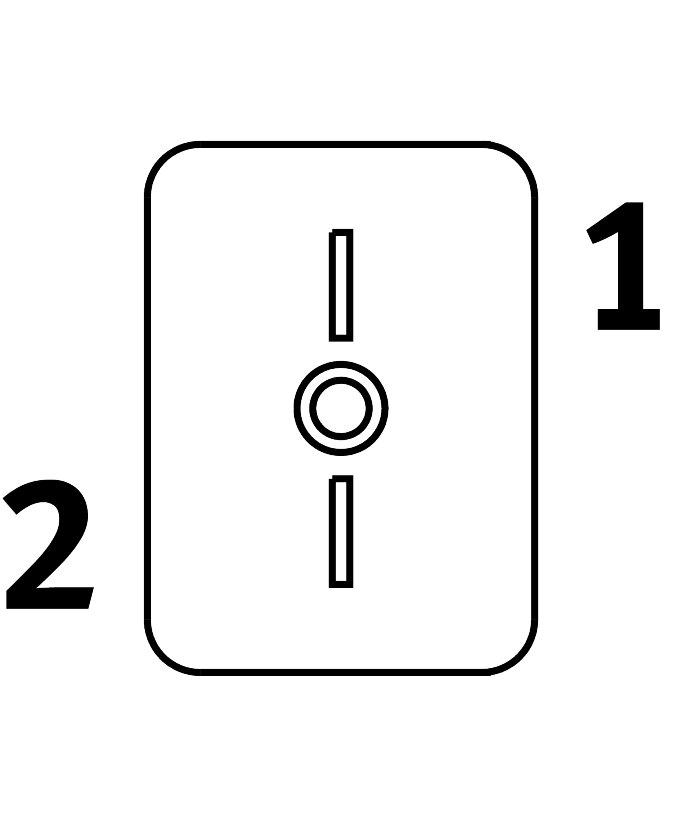

Electrical connection 1, connection technology: Connection diagram ZC, self-tapping screw
Electrical connection 1, number of pins/wires: 2
Electrical connection 1, occupied pins/wires: 2
Electrical connection 1, type of mounting: On air solenoid valve with self-tapping screw
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 2
Electrical connection 2, occupied pins/wires: 2
DC operating voltage range: 20.4 V...26.4 V
Nominal operating voltage DC: 24 V
Surge resistance: 2.4 kV
Reverse polarity protection: Bipolar
Protective earth connection: Not available

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8047677. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
