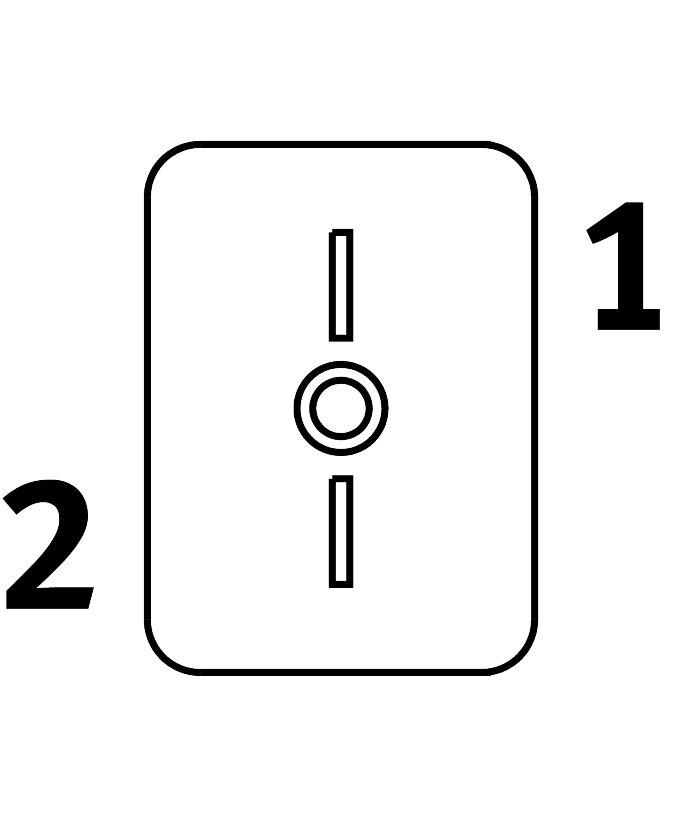

Reference imageConfirm configuration by manufacturer part number.
Festo
8047680
Connecting cable NEBV-Z4WA2L-R-E-5-N-LE2-S1
The Festo part number 8047680 is a 90 g industrial component featuring a yellow LED signal status display alongside holding current reduction and protective circuit functions. It operates within a DC voltage range of 20.4 V to 26.4 V at a nominal voltage of 24 V and includes an angled square socket field device connection with 2 pins mounted via an M2 central screw, paired with a 2-wire open-end control side cable. This unit is designed without a label holder and provides a contact durability rating of 50. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8047680
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047680.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Signal status display
- Yellow LED
- Additional functions
- Holding current reduction | Protective circuit
- Cable designation
- Without label holder
- Contact durability
- 50
- Product weight
- 90 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- Connection diagram ZC, metric screw
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- On air solenoid valve with M2 central screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 20.4 V...26.4 V
- Nominal operating voltage DC
- 24 V
- Surge resistance
- 2.4 kV
- Reverse polarity protection
- Bipolar
- Protective earth connection
- Not available
- Cable length
- 5 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 29 mm
- Cable diameter
- 2.9 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8047680. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
