Festo
8047681
Connecting cable NEBV-Z4WA2-E-0.2-N-Z1W2-S1
This Festo industrial component, part number 8047681, weighs 18 g and features a cable designation without a label holder with a contact durability of 50. The unit operates within a DC operating voltage range of 0 V to 30 V utilizing an angled square socket field device side with 2 pins, 2 occupied pins, a connection diagram ZC, a metric screw, and M2 central screw mounting on an air solenoid valve. Its control side consists of an angled square plug with 2 pins, 2 occupied pins, a connection diagram ZB, a self-tapping screw, and mounting via self-tapping screw on an air solenoid valve. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8047681
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047681.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Contact durability
- 50
- Product weight
- 18 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology

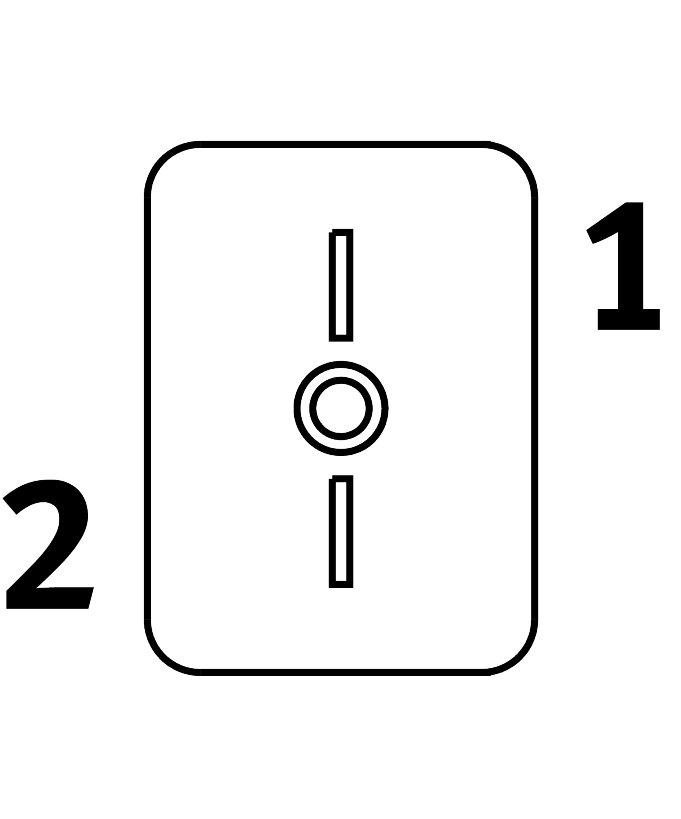

- Connection diagram ZC, metric screw
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- On air solenoid valve with M2 central screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- Connection diagram ZB, self-tapping screw
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- Electrical connection 2, type of mounting
- On air solenoid valve with self-tapping screw
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 24 V
- Surge resistance
- 2.4 kV
- Reverse polarity protection
- Bipolar
- Protective earth connection
- Not available
- Cable length
- 0.2 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, exible cable installation
- 29 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8047681. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
