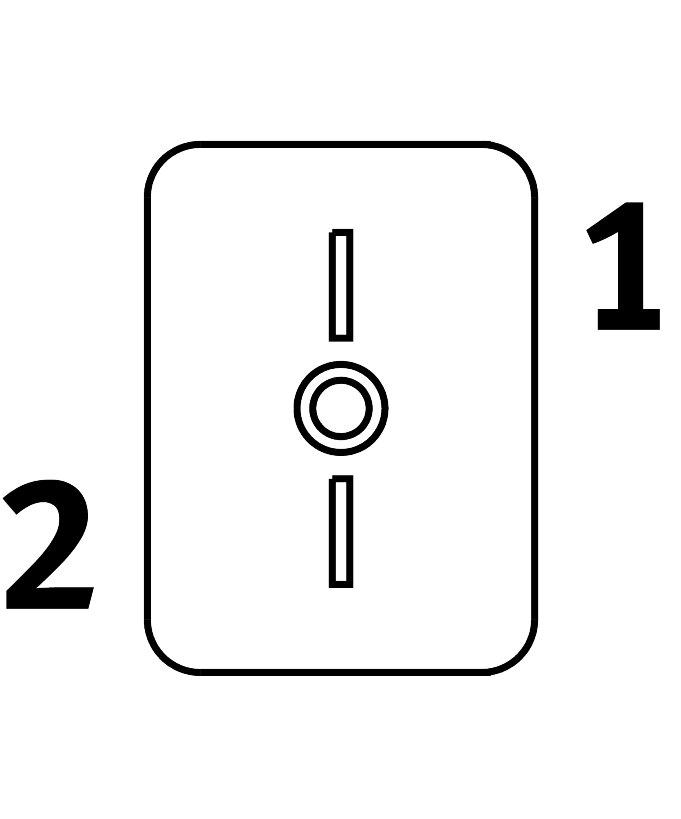

Reference imageConfirm configuration by manufacturer part number.
Festo
8047682
Connecting cable NEBV-Z4WA2L-R-E-0.2-N-Z1W2-S1
This Festo industrial component, part number 8047682, features an integrated yellow LED signal status display alongside holding current reduction and a protective circuit, with a total product weight of 18 g and a contact durability of 50. The field device side comprises an angled, square socket utilizing connection diagram ZC with a metric screw and 2 occupied pins, configured for mounting on an air solenoid valve via an M2 central screw. On the control side, the unit utilizes an angled, square plug featuring connection diagram ZB with a self-tapping screw and 2 occupied pins, delivered without a label holder on the cable designation. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8047682
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8047682.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Signal status display
- Yellow LED
- Additional functions
- Holding current reduction | Protective circuit
- Cable designation
- Without label holder
- Contact durability
- 50
- Product weight
- 18 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology
- Connection diagram ZC, metric screw
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- On air solenoid valve with M2 central screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, connection technology
- Connection diagram ZB, self-tapping screw
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- Electrical connection 2, type of mounting
- On air solenoid valve with self-tapping screw
- DC operating voltage range
- 20.4 V...26.4 V
- Nominal operating voltage DC
- 24 V
- Surge resistance
- 2.4 kV
- Reverse polarity protection
- Bipolar
- Protective earth connection
- Not available
- Cable length
- 0.2 m
- Cable characteristic
- Suitable for energy chains
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8047682. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
