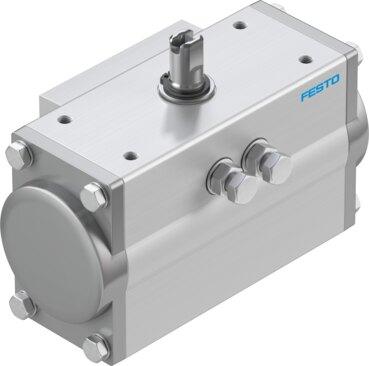

Name: Festo 8048012 Quarter turn actuator DFPD-10-RP-90-RD-F04-R3-EP
Brand: Festo

Quarter turn actuator DFPD-10-RP-90-RD-F04-R3-EP

The Festo part number 8048012 is a double-acting industrial component featuring a gear rack and pinion structural design with a valve actuator size of 10 and a 90-degree swivel angle. This safety device operates at a nominal pressure of 5.5 bar (79.75 psi) within an operating pressure range of 2 bar to 8 bar (29 psi to 116 psi) and a burst pressure of 24 bar. It includes an ISO 5211 standard connection for valves with an F04 flange hole pattern, a 10 mm shaft connection depth, and an end-position adjusting range of -5 to 5 degrees at both 0 degrees and the nominal swivel angle. Certified to ISO 13849 and IEC 61508 for safety functions up to SIL 2 in low demand mode, SIL 1 in high demand mode, and SIL 3 in redundant architecture, it closes to the right and integrates with VDI/VDE 3845 (NAMUR) valve connections and size AA 1 positioners and sensors. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8048012
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8048012.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 10
Flange hole pattern: F04
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: -5 deg...5 deg
Depth shaft connection: 10 mm
Standard connection for valve: ISO 5211
Mounting position: Any
Mode of operation: Double-acting
Structural design: Gear rack/pinion
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 1
Devices type according to VDMA 66413: Safety device
Safety function: The safety function consists of the actuator switching to the dened | safety switching position. This switching movement is achieved by | pressurizing the corresponding pressure chamber with compressed air. | The value of the torque generated depends on the pressure diﬀerence | between the two pressure chambers separated by the piston.
Safety integrity level (SIL): Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
Certied for safety function to ISO 13849 and IEC 61508 (SIL): Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
Burst pressure: 24 bar
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Nominal operating pressure: 0.55 MPa | 5.5 bar | 79.75 psi
