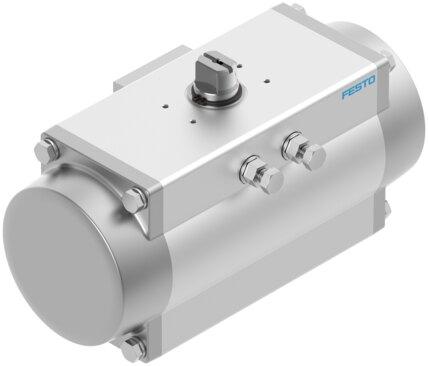

Name: Festo 8048126 Quarter turn actuator DFPD-300-RP-90-RD-F0710
Brand: Festo

Quarter turn actuator DFPD-300-RP-90-RD-F0710

The Festo industrial component, part number 8048126, is a double-acting gear rack/pinion valve actuator featuring a size of 300, an F0710 flange hole pattern, and a nominal swivel angle of 90 degrees with a -5 to 5 degree end-position adjusting range. Operating at a nominal pressure of 5.5 bar (79.75 psi) within a 2 bar to 8 bar range and a 24 bar burst pressure, this safety device conforms to VDI/VDE 3845 for valve and positioner connections and is certified to ISO 13849 and IEC 61508 for use up to SIL 2 in low demand mode, SIL 1 in high demand mode, and SIL 3 in redundant architectures. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8048126
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8048126.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 300
Flange hole pattern: F0710
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: -5 deg...5 deg
Depth shaft connection: 24 mm
Standard connection for valve: ISO 5211
Mounting position: Any
Mode of operation: Double-acting
Structural design: Gear rack/pinion
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 2
Devices type according to VDMA 66413: Safety device
Safety function: The safety function consists of the actuator switching to the dened | safety switching position. This switching movement is achieved by | pressurizing the corresponding pressure chamber with compressed air. | The value of the torque generated depends on the pressure diﬀerence | between the two pressure chambers separated by the piston.
Safety integrity level (SIL): Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
Certied for safety function to ISO 13849 and IEC 61508 (SIL): Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
Burst pressure: 24 bar
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Nominal operating pressure: 0.55 MPa | 5.5 bar | 79.75 psi
