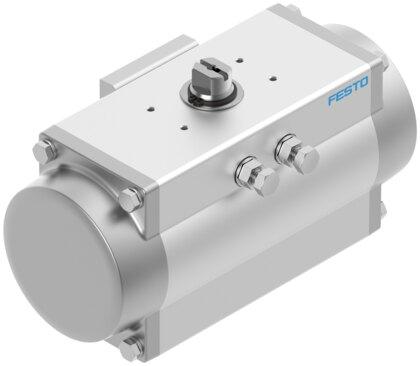

Reference imageConfirm configuration by manufacturer part number.
Festo
8048135
Quarter turn actuator DFPD-160-RP-90-RS30-F0710
Engineered with a gear rack and pinion structural design, this single-acting Festo industrial component features a valve actuator size of 160, an F0710 flange hole pattern, and a nominal swivel angle of 90 degrees with an end-position adjusting range of -5 degrees to 5 degrees at both 0 degrees and the nominal angle. Operating between 0.2 MPa and 0.8 MPa with a 24 bar burst pressure, the unit incorporates an ISO 5211 standard valve connection, a 24 mm shaft connection depth, and VDI/VDE 3845 NAMUR and VDI/VDE 3845 Size AA 1 compliance for positioners and sensors. Certified to ISO 13849 and IEC 61508, the safety function utilizes spring force to switch the actuator to a defined safety position when compressed air is removed and the spring chamber is exhausted, providing safety integrity levels up to SIL 2 in low demand mode, SIL 1 in high demand mode, and SIL 3 in redundant architecture. Submit the exact part number, quantity, and application requirements to receive an official price and lead time quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8048135
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8048135.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 160
- Flange hole pattern
- F0710
- Swivel angle
- 90 deg
- End-position adjusting range at 0°
- -5 deg...5 deg
- End-position adjusting range at nominal swivel angle
- -5 deg...5 deg
- Depth shaft connection
- 24 mm
- Standard connection for valve
- ISO 5211
- Mounting position
- Any
- Mode of operation
- Single-acting
- Structural design
- Gear rack/pinion
- Closing direction
- Closes to the right
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 1
- Devices type according to VDMA 66413
- Safety device
- Safety function
- The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched off and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
- Safety integrity level (SIL)
- Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
- Certied for safety function to ISO 13849 and IEC 61508 (SIL)
- Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
- Burst pressure
- 24 bar
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.3 MPa | 3 bar | 43.5 psi
- Maritime classication
- See certicate
