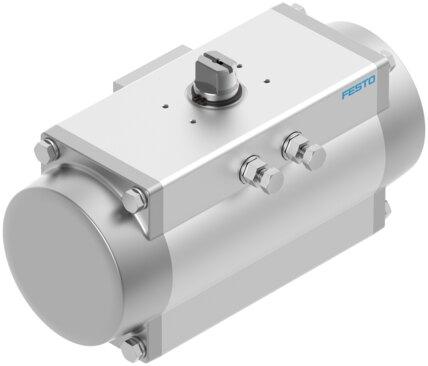

Name: Festo 8048140 Quarter turn actuator DFPD-300-RP-90-RS60-F0710
Brand: Festo

Quarter turn actuator DFPD-300-RP-90-RS60-F0710

The Festo part number 8048140 is a single-acting gear rack and pinion industrial valve actuator featuring a size 300 actuator, a 90-degree swivel angle, and an operating pressure range of 2 bar to 8 bar (29 psi to 116 psi) with a nominal operating pressure of 6 bar (87 psi). Designed as a safety device conforming to VDMA 66413, it utilizes spring force to switch to a defined safety position when compressed air is switched off and the spring chamber is exhausted, achieving functional safety ratings up to SIL 2 in low demand mode, SIL 1 in high demand mode, and SIL 3 in a redundant architecture per IEC 61508 and ISO 13849. The unit includes an F0710 flange hole pattern, a 24 mm shaft connection depth, ISO 5211 standard valve connection, VDI/VDE 3845 NAMUR valve connection, and VDI/VDE 3845 Size AA 2 positioner and position sensor connection points, supporting any mounting position, right-closing direction, and end-position adjusting ranges of -5 degrees to 5 degrees at both 0 degrees and the nominal swivel angle. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8048140
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8048140.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 300
Flange hole pattern: F0710
Swivel angle: 90 deg
End-position adjusting range at 0°: -5 deg...5 deg
End-position adjusting range at nominal swivel angle: -5 deg...5 deg
Depth shaft connection: 24 mm
Standard connection for valve: ISO 5211
Mounting position: Any
Mode of operation: Single-acting
Structural design: Gear rack/pinion
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 2
Devices type according to VDMA 66413: Safety device
Safety function: The safety function consists of the actuator switching to the dened | safety switching position when the compressed air is switched oﬀ and | the spring chamber is exhausted. This switching movement is achieved | through the spring force of the spring assembly.
Safety integrity level (SIL): Up to SIL 2 low demand mode | up to SIL 3 in a redundant architecture | up to SIL 1 high demand mode
Certied for safety function to ISO 13849 and IEC 61508 (SIL): Product can be used in safety-related parts of control systems up to SIL | 2, low demand | Product can be used in safety-related parts of control systems up to SIL | 1, high demand | up to SIL 3 in a redundant architecture
Burst pressure: 24 bar
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
Nominal operating pressure: 0.6 MPa | 6 bar | 87 psi
Maritime classication: See certicate

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8048140. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
