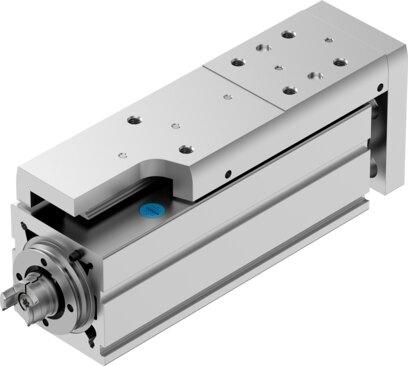

Reference imageConfirm configuration by manufacturer part number.
Festo
8048302
Mini slide EGSC-BS-KF-45-75-10P
The Festo part number 8048302 is an electrical mini-slide featuring a ball screw structural design with a 75 mm working stroke, size 45 dimensions, and a 10 mm screw diameter with a 10 mm/U spindle pitch. This component includes a recirculating ball bearing guide, supports stepper and servo motors, accommodates any mounting position, and achieves a maximum speed of 0.6 m/s, a maximum rotational speed of 3600 rpm, a maximum acceleration of 15 m/s², and a repetition accuracy of ±0.015 mm. Operating at a 100% duty cycle, the unit offers homing via positive fixed stop block, negative fixed stop block, or reference switch, and position sensing via proximity switch with a reversing backlash of 150 µm, 0 mm stroke reserve, CRC 0 corrosion resistance, and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8048302
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8048302.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 75 mm
- Size
- 45
- Stroke reserve
- 0 mm
- Reversing backlash
- 150 µm
- Screw diameter
- 10 mm
- Spindle pitch
- 10 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electrical mini-slide | With ball screw
- Motor type
- Stepper motor | Servo motor
- Homing
- Fixed stop block positive | Fixed stop block negative | Reference switch
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 3600 rpm
- Max. speed
- 0.6 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Noise level
- 50 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.014 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- Fixed bearing dynamic basic load rating
- 7413 N
