Festo
8048310

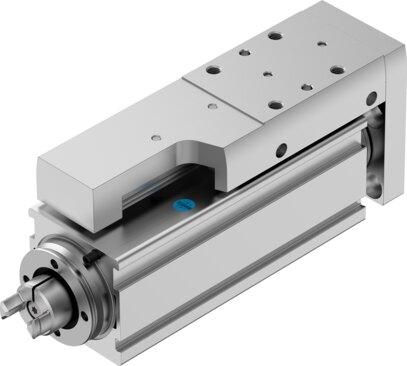

Mini slide EGSC-BS-KF-25-25-6P
The Festo part number 8048310 is an electrical mini-slide featuring a ball screw structural design with a size 25 format, a 25 mm working stroke, and a 6 mm screw diameter. This component incorporates a recirculating ball bearing guide, a 6 mm/U spindle pitch, and supports an any mounting position configuration with a 0 mm stroke reserve and a 150 µm reversing backlash. Operational parameters include a maximum speed of 0.4 m/s, a maximum rotational speed of 4000 rpm, a maximum acceleration of 15 m/s², a repetition accuracy of ±0.015 mm, and a 100% duty cycle. Position sensing is achieved via proximity switch, homing operates through a fixed stop block positive, fixed stop block negative, or reference switch, and compatibility extends to stepper and servo motors within a CRC 0 and VDMA24364 Zone III LABS conformity environment. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8048310
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8048310.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 25 mm
- Size
- 25
- Stroke reserve
- 0 mm
- Reversing backlash
- 150 µm
- Screw diameter
- 6 mm
- Spindle pitch
- 6 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electrical mini-slide | With ball screw
- Motor type
- Stepper motor | Servo motor
- Homing
- Fixed stop block positive | Fixed stop block negative | Reference switch
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch
- Max. acceleration
- 15 m/s²
- Max. rotational speed
- 4000 rpm
- Max. speed
- 0.4 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Noise level
- 50 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.005 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- Fixed bearing dynamic basic load rating
- 2810 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8048310. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
