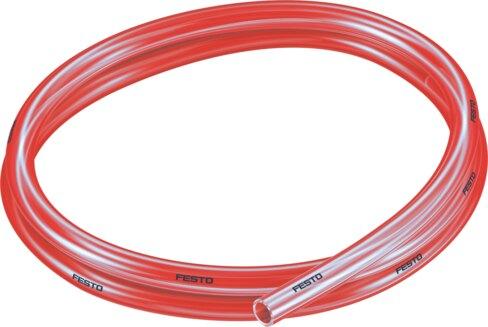

Name: Festo 8048705 Plastic tubing PUN-H-10X1,5-TRT
Brand: Festo

Plastic tubing PUN-H-10X1,5-TRT

The Festo part number 8048705 is a 10 mm outside diameter and 7 mm inside diameter industrial component constructed from ether-based TPE-U material with a product weight of 0.0465 kg/m. Designed with a minimum bending radius of 28 mm and a flow-rate relevant bending radius of 52 mm, this tubing is suitable for energy chains and operates across an ambient temperature range of -35 °C to 60 °C. It supports compressed air conforming to ISO 8573-1:2010 [7:-:-] as well as liquid water, featuring an operating pressure of -0.095 MPa to 0.6 MPa for the entire temperature range and up to 1 MPa depending on temperature. The component holds TÜV certification under certificate number B 013277 0527 00, meets UL94 HB material fire test standards, and conforms to VDMA24364-B2-L LABS (PWIS) with suitability for reduced Cu/Zn/Ni battery production. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8048705
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8048705.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 10 mm
Bending radius relevant for ow rate: 52 mm
Inside diameter: 7 mm
Min. bending radius: 28 mm
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.0465 kg/m
Pneumatic connection: For plug connection outside diameter 10 mm
Color: translucent red
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
