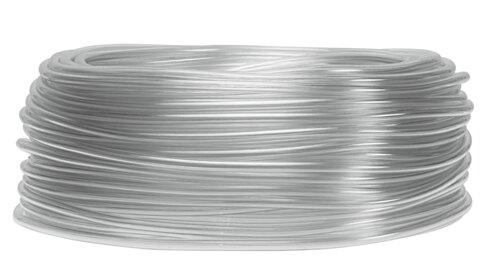

Name: Festo 8048712 Plastic tubing PUN-H-12X2-TBL-200
Brand: Festo

Plastic tubing PUN-H-12X2-TBL-200

The Festo 8048712 is an industrial component featuring an ether-based TPE-U construction with a 12 mm outside diameter and 8 mm inside diameter, specifically suited for energy chains. It operates within a temperature range of -35 °C to 60 °C, supporting a standard operating pressure of -0.095 MPa to 0.6 MPa and a temperature-dependent operating pressure up to 1 MPa. Certified by TÜV under authority B 013277 0527 00, this component accommodates compressed air and liquid water operating media while meeting UL94 HB material fire tests and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8048712
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8048712.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 12 mm
Bending radius relevant for ow rate: 62 mm
Inside diameter: 8 mm
Min. bending radius: 33 mm
Application note: TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Certication: TÜV
Certicate issuing authority: B 013277 0527 00
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See supplementary material information
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.0729 kg/m
Pneumatic connection: For plug connection outside diameter 12 mm
Color: translucent blue
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)
