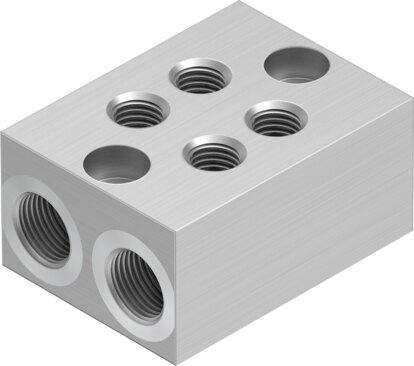

Reference imageConfirm configuration by manufacturer part number.
Festo
8049141
Common supply manifold OABM-P-G3-10-2
The Festo 8049141 is an industrial component featuring two device locations and a wrought aluminum alloy sub-base with a G1/8 pneumatic connection 1. Weighing 45.2 g, this RoHS-compliant part supports through-hole mounting with a minimum tightening torque of 0.3 Nm and a maximum tightening torque of 3.3 Nm. It achieves corrosion resistance class 2 for moderate corrosion stress and conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8049141
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8049141.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Number of device locations
- 2
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque
- 3.3 Nm
- Min. tightening torque
- 0.3 Nm
- Product weight
- 45.2 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8049141. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
