Festo
8049144

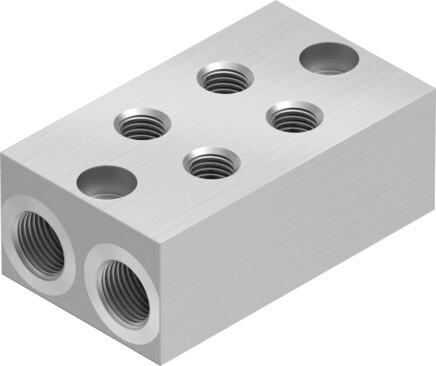

Common supply manifold OABM-P-G3-15-2
The Festo industrial component, part number 8049144, features a wrought aluminum alloy sub-base with two device locations and a G1/8 pneumatic connection 1. Weighing 59.6 g, this RoHS-compliant unit accommodates through-hole mounting and requires a tightening torque between 0.3 Nm and 3.3 Nm. It holds a corrosion resistance class (CRC) rating of 2 for moderate corrosion stress and satisfies VDMA24364-B1/B2-L LABS (PWIS) conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8049144
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8049144.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Number of device locations
- 2
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque
- 3.3 Nm
- Min. tightening torque
- 0.3 Nm
- Product weight
- 59.6 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8049144. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
