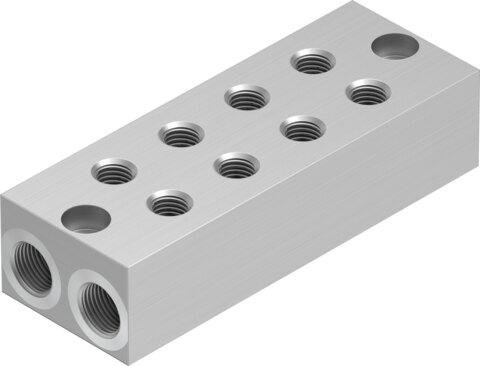

Reference imageConfirm configuration by manufacturer part number.
Festo
8049145
Common supply manifold OABM-P-G3-15-4
The Festo 8049145 is an industrial component featuring a wrought aluminum alloy sub-base with four device locations and G1/8 pneumatic connection 1. This RoHS compliant part includes through-hole mounting, a product weight of 97.1 g, a corrosion resistance class of CRC 2 for moderate corrosion stress, and LABS conformity per VDMA24364-B1/B2-L. Installation requires tightening torques ranging from a minimum of 0.3 Nm to a maximum of 3.3 Nm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8049145
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8049145.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Number of device locations
- 4
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque
- 3.3 Nm
- Min. tightening torque
- 0.3 Nm
- Product weight
- 97.1 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8049145. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
