Festo
8049146

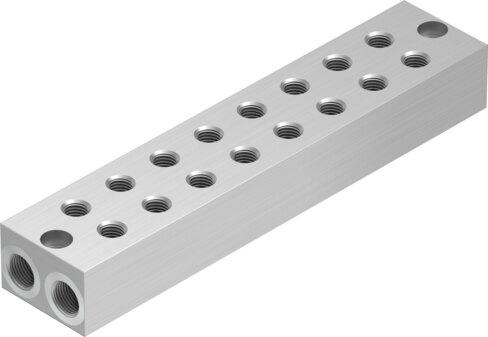

Common supply manifold OABM-P-G3-15-8
This Festo industrial component, part number 8049146, features 8 device locations and a wrought aluminum alloy sub-base weighing 172 g. Designed with through-hole mounting, it incorporates a G1/8 pneumatic connection 1 alongside a tightening torque range of 0.3 Nm to 3.3 Nm. The assembly complies with RoHS material standards, achieves corrosion resistance class CRC 2 for moderate corrosion stress, and meets VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8049146
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8049146.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Number of device locations
- 8
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque
- 3.3 Nm
- Min. tightening torque
- 0.3 Nm
- Product weight
- 172 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Wrought aluminum alloy
