Festo
8049233

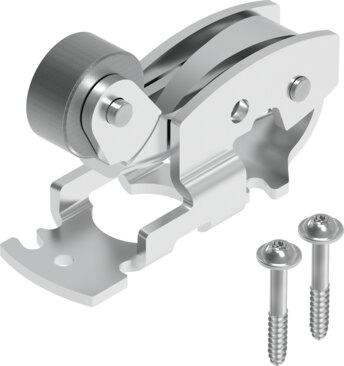

Roller lever VAOM-R4-20-D1-52
The Festo 8049233 is a mechanical industrial component featuring a 20 mm width and a structural roller lever design for direct control. Built with galvanized steel actuator attachments, this unit has a low corrosion resistance class of CRC 1, VDMA24364-B1/B2-L LABS conformity, and RoHS compliant materials. It is configured for screwed-on mounting at the movement level and operates within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8049233
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8049233.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 20 mm
- Actuation type
- Mechanical
- Mounting position
- Movement level
- Structural design
- Roller lever
- Type of control
- directly
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Type of mounting
- Screwed on
- Note on materials
- RoHS compliant
- Actuator attachments material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8049233. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
