Reference imageConfirm configuration by manufacturer part number.
Festo
8049880

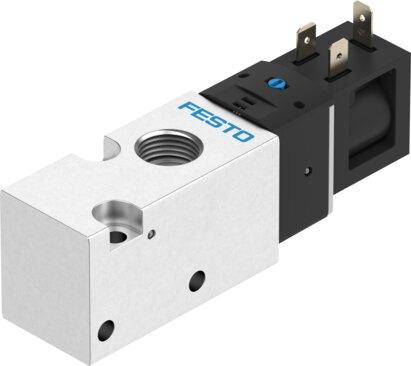

Air solenoid valve VUVS-LK30-M32C-AD-G38-1B2-S
The Festo 8049880 is a 3/2-way closed, monostable electrical industrial component featuring a 31 mm valve size, a piston gate valve structural design, and a soft sealing principle. Operating at 24V DC within a pressure range of 0.15 MPa to 0.8 MPa, it delivers a normal nominal flow rate of 1600 l/min through a G3/8 pneumatic working port and an 8.1 mm nominal width. Additional attributes include internal pilot air supply, pneumatic spring reset, adjustable exhaust air, positive overlap lap, non-reversible flow direction, IP65 protection with plug socket, and detenting or non-detenting manual override for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8049880
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8049880.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 8.1 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.37
- C value
- 7.03 l/sbar
- Switching time off
- 20 ms
- On switching time
- 16 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2500 µs
- Max. negative test pulse on 1 signal
- 1100 µs
- Coil characteristics
- 24 V DC: 3.3 W
- Permissible voltage uctuations
- +/- 10%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8049880. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
