Festo
8049882

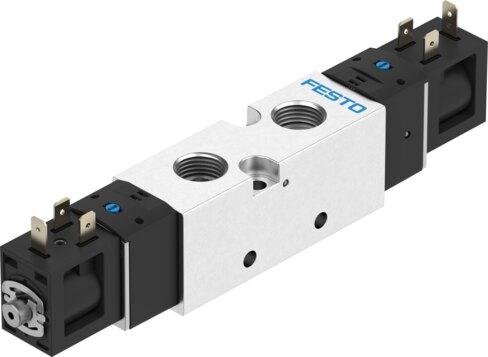

Air solenoid valve VUVS-LK30-B52-D-G38-1B2-S
The Festo 8049882 is a 5/2-way bistable industrial component featuring a 31 mm valve size and a piston gate valve structural design with a soft sealing principle. This electrically actuated, piloted valve operates on 24V DC with an operating pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar) and delivers a normal nominal flow rate of 1600 l/min through G3/8 pneumatic working ports. It provides an IP65 degree of protection with a plug socket per IEC 60529, an 8.1 mm nominal width, internal pilot air supply, adjustable exhaust air, and both detenting and non-detenting manual overrides. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8049882
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8049882.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1600 l/min
- Pneumatic working port
- G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Piston gate valve
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 8.1 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- b-value
- 0.37
- C value
- 7.03 l/sbar
- Changeover time
- 10 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2500 µs
- Max. negative test pulse on 1 signal
- 1100 µs
- Coil characteristics
- 24 V DC: 3.3 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
