Festo
8050120

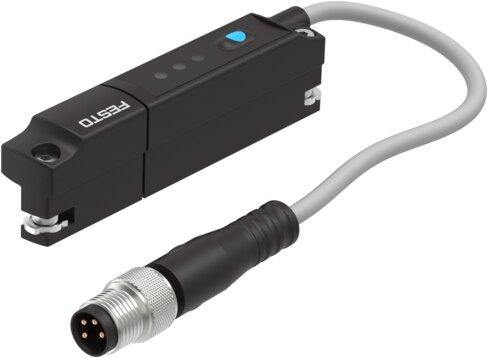

Position transmitter SDAP-MHS-M50-1L-A-E-0.3-M8
The Festo part number 8050120 is an industrial component featuring a magnetic Hall measuring principle and a sensing range of 0 mm to 50 mm for T-slot design applications. This unit operates on a DC voltage range of 15 V to 30 V with 10% residual ripple, delivering a 4 mA to 20 mA analog output across a 0.05 mm displacement resolution and a 1 ms typical sampling interval. It includes short-circuit and overload protection, a maximum load resistance of 500 Ohm, and functions within an ambient temperature range of -25 °C to 70 °C while carrying RCM compliance, c UL us listing, CE, and UKCA markings. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8050120
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8050120.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- For T-slot
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant | Halogen-free
- Measured variable
- Position
- Measuring principle
- Magnetic Hall
- Sensing range
- 0 mm...50 mm
- Ambient temperature
- -25 °C...70 °C
- Typical sampling interval
- 1 ms
- Max. travel speed
- 3 m/s
- Displacement resolution
- 0.05 mm
- Analog output
- 4 - 20 mA
- Sensitivity
- 0.32 mA/mm
- Typical linearity error
- ±0.25 mm
- Max. load resistance of current output
- 500 Ohm
- Short-circuit protection
- Yes
- Overload protection
- Available
- DC operating voltage range
- 15 V...30 V
- Residual ripple
- 10%
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Cable with plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock
- Connection outlet orientation
- Longitudinal
- Material of pin contacts
- Gold-plated copper alloy
- Connector cable test conditions
- Flexural strength: as per Festo standard | Torsion resistance: > 300,000 cycles, ±270°/0.1 m
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8050120. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
