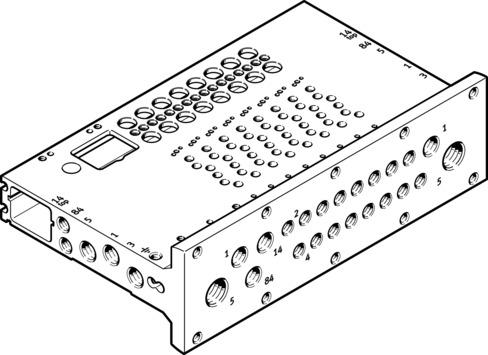

Reference imageConfirm configuration by manufacturer part number.
Festo
8058345
Manifold rail VABM-L1-14HWS2-G14-12-GR
The Festo 8058345 industrial component features a 16 mm width dimension, a wrought aluminum alloy manifold rail material, and a maximum number of 12 valve positions with any mounting position. It includes M5 pilot air and exhaust air ports 12/14 and 82/84, alongside pneumatic connections 1 and 3 at G1/4, connections 2 and 4 at G1/8, and connection 5 at G1/4. Certified as c UL us - recognized (OL) with RoHS compliant materials, it operates within a storage temperature range of -20 °C to 60 °C, VDMA24364-B1/B2-L LABS conformity, and corrosion resistance class 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8058345
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8058345.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 16 mm
- Mounting position
- Any
- Max. no. of valve positions
- 12
- Certication
- c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/8
- Pneumatic connection 3
- G1/4
- Pneumatic connection 4
- G1/8
- Pneumatic connection 5
- G1/4
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8058345. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
