Festo
8058924

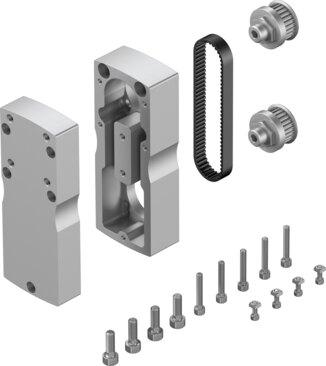

Parallel kit EAMM-U-50-D32-38AA-78
The Festo part number 8058924 is an industrial component featuring a size of 50 and any mounting position, with a mass moment of inertia of 12.1 kgmm² and a product weight of 600 g. This RoHS-compliant unit operates up to a maximum rotational speed of 6000 rpm, delivering a no-load driving torque of 0.01 Nm and a transferable torque of 1 Nm via actuator interface code D32 and motor input interface code 38AA. It is built with VDMA24364-B2-L LABS conformity, an IP40 degree of protection, and functions within ambient temperatures of -10 °C to 60 °C, storage temperatures of -25 °C to 60 °C, and 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8058924
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8058924.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 12.1 kgmm²
- No-load driving torque
- 0.01 Nm
- Transferable torque
- 1 Nm
- Product weight
- 600 g
- Interface code, actuator
- D32
- Interface code, motor in
- 38AA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8058924. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
