Festo
8058926

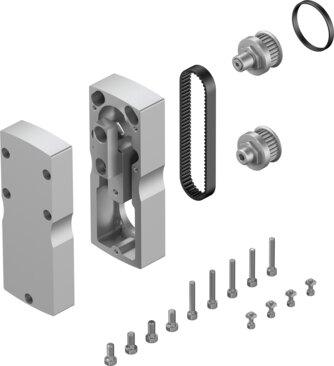

Parallel kit EAMM-U-50-S38-38AA-78
The Festo size 50 industrial component features an actuator interface code of S38 and a motor input interface code of 38AA, supporting any mounting position and a maximum rotational speed of 6000 rpm. This RoHS-compliant unit weighs 600 g with a mass moment of inertia of 12.1 kgmm², a no-load driving torque of 0.01 Nm, and a transferable torque of 1 Nm. Operating within an ambient temperature range of -10 °C to 60 °C and an IP40 degree of protection, it satisfies VDMA24364-B2-L LABS conformity and tolerates storage temperatures from -25 °C to 60 °C at 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8058926
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8058926.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 12.1 kgmm²
- No-load driving torque
- 0.01 Nm
- Transferable torque
- 1 Nm
- Product weight
- 600 g
- Interface code, actuator
- S38
- Interface code, motor in
- 38AA
- Note on materials
- RoHS compliant
