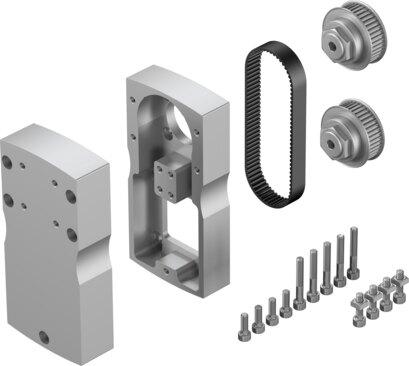

Name: Festo 8058970 Parallel kit EAMM-U-70-S48-70AA-96
Brand: Festo

Parallel kit EAMM-U-70-S48-70AA-96

The Festo size 70 industrial component, part number 8058970, features a 1:1 gear ratio, a transferable torque of 7 Nm, and a maximum rotational speed of 5000 rpm with a no-load driving torque of 0.18 Nm. This RoHS-compliant unit weighs 1720 g, has a mass moment of inertia of 118 kgmm², and incorporates actuator interface code S48 alongside motor input interface codes 70AA and 70AB while complying with VDMA24364 Zone III LABS conformity. Designed with an IP40 degree of protection for any mounting position, it operates within an ambient temperature range of -10 °C to 60 °C, supports a storage temperature range of -25 °C to 60 °C, and tolerates relative air humidity levels from 0 to 95%. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8058970
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8058970.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 70
Mounting position: Any
Gear ratio: 1:1
Max. rotational speed: 5000 rpm
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -25 °C...60 °C
Relative air humidity: 0 - 95%
Degree of protection: IP40
Ambient temperature: -10 °C...60 °C
Mass moment of inertia: 118 kgmm²
No-load driving torque: 0.18 Nm
Transferable torque: 7 Nm
Product weight: 1720 g
Interface code, actuator: S48
Interface code, motor in: 70AA | 70AB
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8058970. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
