Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

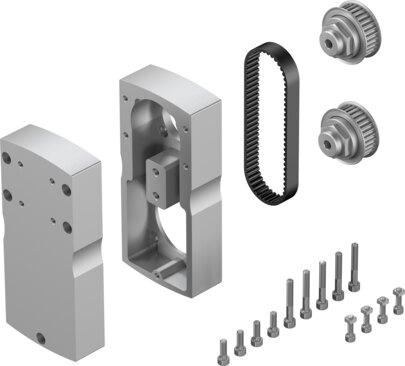

Reference imageConfirm configuration by manufacturer part number.
Festo
8058972
Parallel kit EAMM-U-86-D40-60PA-102
The Festo 8058972 is an industrial component featuring a size 86 designation, an actuator interface code of D40, and a motor input interface code of 60PA with a product weight of 2500 g. This unit achieves a maximum rotational speed of 5000 rpm, a transferable torque of 9.5 Nm, a no-load driving torque of 0.25 Nm, and a mass moment of inertia of 175 kgmm², operating with any mounting position and an IP40 degree of protection. Materials are RoHS compliant and conform to VDMA24364-B2-L LABS (PWIS) standards, operating within an ambient temperature range of -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and relative air humidity levels between 0 and 95%. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8058972
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8058972.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Mounting position
- Any
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 175 kgmm²
- No-load driving torque
- 0.25 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 2500 g
- Interface code, actuator
- D40
- Interface code, motor in
- 60PA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8058972. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
