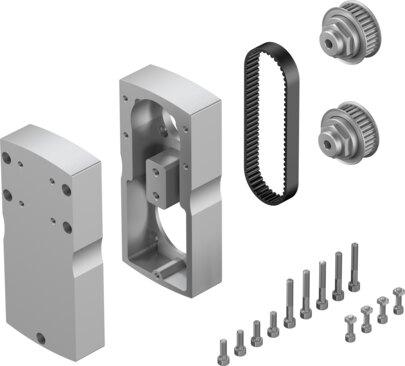

Name: Festo 8058990 Parallel kit EAMM-U-86-D60-70GA-102
Brand: Festo

Parallel kit EAMM-U-86-D60-70GA-102

This Festo industrial component, part number 8058990, features a size of 86 and an actuator interface code of D60 with a motor input interface code of 70GA. It delivers a transferable torque of 9.5 Nm, a no-load driving torque of 0.25 Nm, and a maximum rotational speed of 5000 rpm while maintaining a mass moment of inertia of 175 kgmm² and a product weight of 2500 g. Designed for any mounting position, the unit operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and relative air humidity from 0 to 95%, possessing an IP40 degree of protection along with VDMA24364-B2-L LABS conformity and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8058990
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8058990.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 86
Mounting position: Any
Max. rotational speed: 5000 rpm
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -25 °C...60 °C
Relative air humidity: 0 - 95%
Degree of protection: IP40
Ambient temperature: -10 °C...60 °C
Mass moment of inertia: 175 kgmm²
No-load driving torque: 0.25 Nm
Transferable torque: 9.5 Nm
Product weight: 2500 g
Interface code, actuator: D60
Interface code, motor in: 70GA
Note on materials: RoHS compliant
