Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8058992

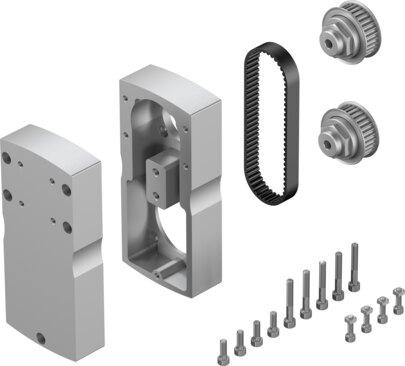

Parallel kit EAMM-U-86-D60-82AA-102
The Festo industrial component, part number 8058992, features a size 86 designation with a product weight of 2500 g and an actuator interface code of D60 alongside a motor-in interface code of 82AA. This unit achieves a maximum rotational speed of 5000 rpm, a transferable torque of 9.5 Nm, a no-load driving torque of 0.25 Nm, and a mass moment of inertia of 175 kgmm². Operating within ambient temperatures from -10 °C to 60 °C and storage temperatures from -25 °C to 60 °C, it maintains an IP40 degree of protection, supports 0 to 95% relative air humidity, complies with VDMA24364-B2-L LABS conformity, and adheres to RoHS material standards for any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8058992
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8058992.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Mounting position
- Any
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 175 kgmm²
- No-load driving torque
- 0.25 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 2500 g
- Interface code, actuator
- D60
- Interface code, motor in
- 82AA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8058992. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
